| Brand Name : | KAIXIN |
| Model Number : | KX-Alloy800H |
| Certification : | ISO9001:2015 |
| Price : | To negotiate |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 50~80 TONS PER MONTH |
| Delivery Time : | 45~60days |

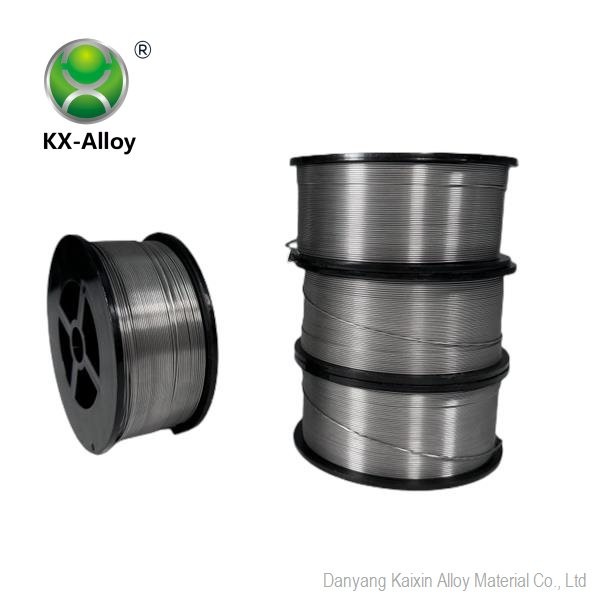

KX Incoloy 800H Nickel Alloy Welding Wire Round Bar Light Rod For Incoloy Alloy
Product Description and Application
Incoloy 800H also known as NS112,
Incoloy 800H is an austenitic alloy widely used in high temperature and pressure structural parts. The alloy has a high chromium content and sufficient nickel content, so it has a high temperature corrosion resistance. It has excellent stress corrosion rupture resistance in the industrial application of pressurized water, so it is used to manufacture stress corrosion rupture resistance equipment.Its corrosion resistance is better than ordinary austenitic stainless steel, better than Inconel 600 and Monel 400 alloys
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Grade | Cr | Ni | Mn | Si | Al | Ti | Al+Ti | C | Cu | P | S | Fe |
| Min | 19 | 30 | -- | -- | 0.15 | 0.15 | 0.85 | 0.06 | -- | -- | -- | 39.5 |
| Max | 23 | 35 | 1.5 | 1 | 0.6 | 0.6 | 1.2 | 0.1 | 0.75 | 0.045 | 0.015 | -- |
| Density | 8.0 g/cm3 |
| Melting Point | 1350-1400 ℃ |
| Grade | Tensile strength | Yield Strength | Elongation |
| Rm N/mm2 | RP0.2N/mm2 | A5 % | |
| Incoloy800H | 450 | 180 | 35 |
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |

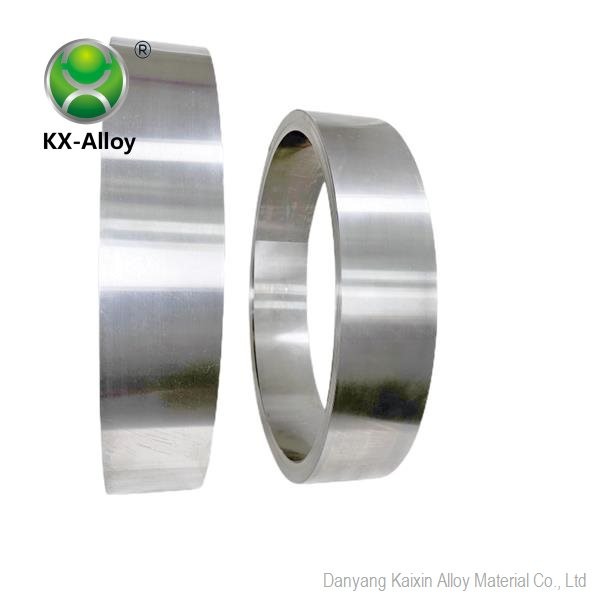

| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe | ¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
|
|
