    KX UNS N07750 Light Rod Plate Structural Operating Temperature Range For High Temperature Alloy

    Ask Lasest Price
    Brand Name : KAIXIN
    Model Number : KX-Alloyx750
    Certification : ISO9001:2015
    Price : To negotiate
    Payment Terms : T/T, L/C
    Supply Ability : 50~80TONS per MONTH
    Delivery Time : 45~60days
    • Product Details
    • Company Profile

    KX UNS N07750 Light Rod Plate Structural Operating Temperature Range For High Temperature Alloy

    Product Description and Application

    UNS N07750 is also known as W.N.2.4669,X750, GH4145

    UNS N07750 has good corrosion resistance and oxidation resistance below 980℃, high strength below 800℃, good relaxation resistance below 540℃ as well as good formability and welding performance, which is used for corrosion resistant flat wave spring, circumferential spiral spring, spiral spring, spring clamp, seal ring and etc below 540℃.


    Process Performance and Requirements


    • Product Fusion Process

    Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)


    • Product Chemical Composition

    Alloy Grade%NiCrFeNbCoCMnSiSCuAlTi
    UNS N07750Min145.00.70.42.25
    Max70179.01.21.000.081.000.50.010.51.02.75

    • Product Physical Property

    Density8.28 g/cm3
    Melting Point1393-1427℃

    • Product Mechanical Property

    Alloy

    Tensile strength

    Rm N/mm2

    Yield strength

    RP0.2N/mm2

    Percentage Elongation

    A5 %

    Brinell hardness

    HB

    Solution

    Treatment

    126786825≤400

    • Productive Process

    KX UNS N07750 Light Rod Plate Structural Operating Temperature Range For High Temperature Alloy

    • Professional Customization

    Cold-drawn Wire¢0.3~¢18mm(Delivery in rolls or trays)
    Hot-Rolling Wire¢5.5~¢20mm(Delivery in rolls)

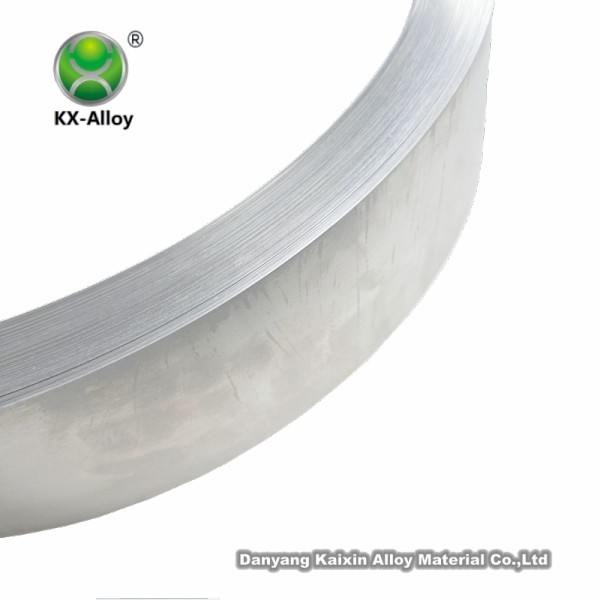

    Stripthickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips)

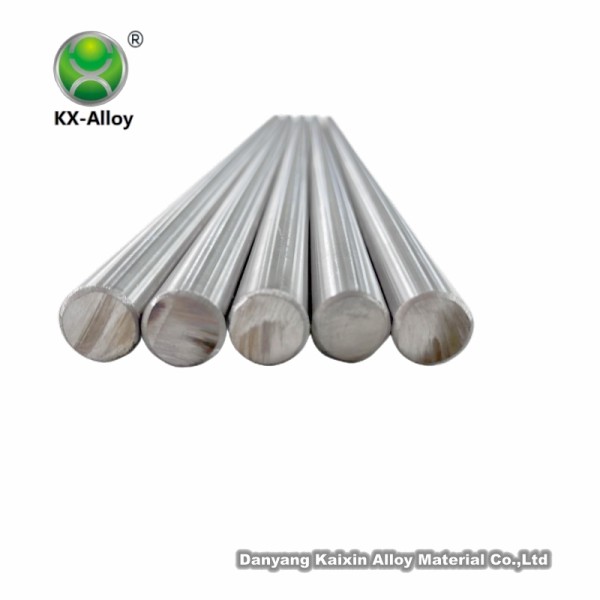

    Smooth Forged Rod on a Lathe

    ¢60~350mm,L800-2500mm

    Hot-rolled Burnishing¢20~80mm,L1000-5000mm
    Cold Drawn and Burnishing¢2.5~18mm,L1000-8000mm
    Seamless Tube¢1~275mm,wall thickness 0.2~30,L1000-8000mm
