    KX GH3030 Light Rod Plate Structural Operating Temperature Range For High Temperature Alloy

    Product Description and Application

    "GH3030" is also known as ЭП435,ХН778T(RU)

    GH3030 80Ni-20Cr solid solution reinforced superalloy has simple chemical composition, satisfactory thermal strength and high plasticity below 800℃. It has good oxidation resistance, thermal fatigue, cold stamping and welding process performance. The alloy is single-phase austenite after solution treatment and its microstructure is stable during use. It can be used for a long time under the condition of high temperature (600 ~ 1100℃) oxidation atmosphere and gas corrosion. It is used to make hot end parts of aviation and aerospace engines and high temperature corrosion resistant materials required by industrial gas turbine, energy, chemical and etc industrial sectors.


    Process Performance and Requirements


    • Product Fusion Process

    Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)


    • Product Chemical Composition

    CSiMnPSCrNiAlTiFe
    19.00-Rem0.15-
    ≤0.120.80.70.030.02220.150.351.5

    • Product Physical Property

    Density8.4g/cm3
    Melting Point1374~1420℃
    Magnetic PropertyNon-magnetic

    • Product Mechanical Property

    Yield StrengthTensile StrengthElongation
    ó 0.2/MPaó b/MPaδ5%
    32063535

    • Product Thermal Conductivity

    θ/℃100200300400500600700800900
    λ/(W/(m·C))15.116.31819.320.922.223.425.126.4

    • Productive Process

    KX GH3030 Light Rod Plate Structural Operating Temperature Range For High Temperature Alloy


    • Professional Customization

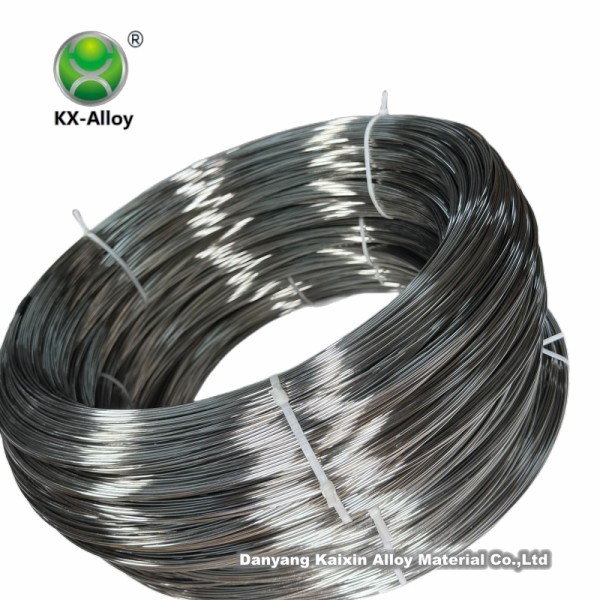

    Cold-drawn Wire¢0.3~¢18mm(Delivery in rolls or trays)
    Hot-Rolling Wire¢5.5~¢20mm(Delivery in rolls)

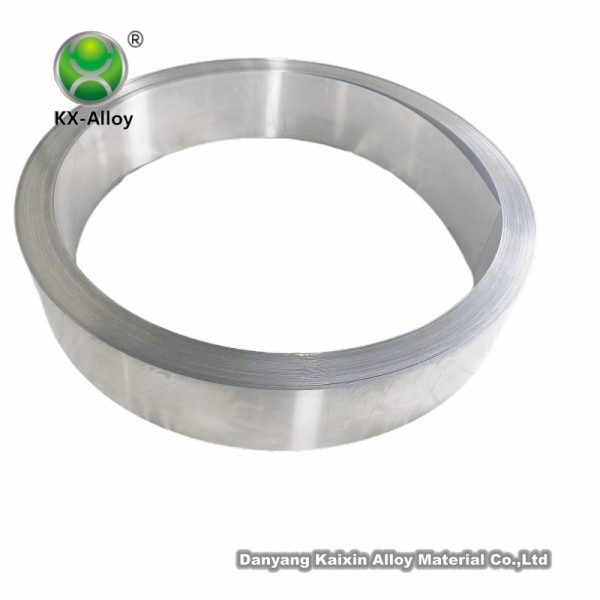

    Stripthickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips)

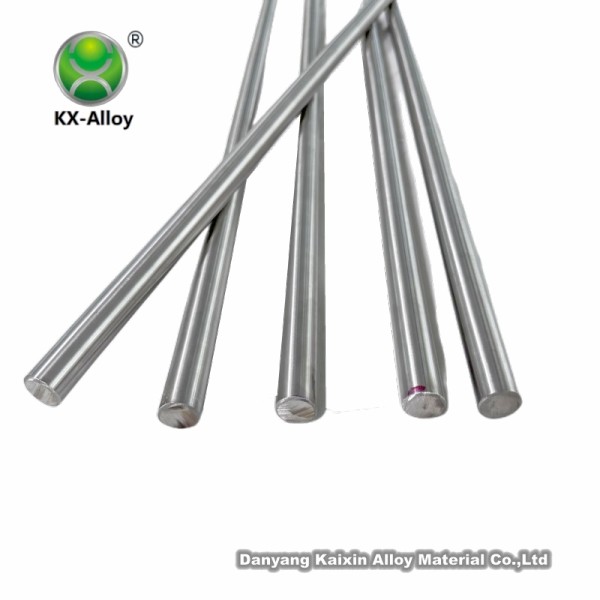

    Smooth Forged Rod on a Lathe

    ¢60~350mm,L800-2500mm

    Hot-rolled Burnishing¢20~80mm,L1000-5000mm
    Cold Drawn and Burnishing¢2.5~18mm,L1000-8000mm
    Seamless Tube¢1~275mm,wall thickness 0.2~30,L1000-8000mm
