KX GH80A Uns Light Rod Plate Structural Operating Temperature Range For High Temperature Alloy
Product Description and Application
GH80A is also known asNimonic80A,GH4080A (China)
GH80A is superalloy with Ni-Cr matrix, aluminum and titanium added to form γ′ phase dispersion strengthening. Except the aluminum content is slightly higher, it is similar to GH4033 at 700 ~ 800℃, which has good creep resistance and oxidation resistance at 650 ~ 850℃. The alloy has good cold and hot working performance. It is used to manufacture rotor blades, guide blade supports, fan mounting rings, bolts, blade lock plates and etc parts of aeroengines. And it is also used in the manufacture of fasteners and blades for automobile engines, valves and axles for trains.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| C | Cr | Ni | Al | Ti | ||||||||||
| 0.04～0.10 | 18.0～21.0 | Rem | 1.00～1.40 | 1.8～2.7 | ||||||||||
| Co | Fe | B | Mn | Si | P | S | Ag | Bi | Cu | Pb | ||||
| Not more than | ||||||||||||||
| 2 | 1.5 | 0.008 | 0.4 | 0.8 | 0.02 | 0.015 | 0.0005 | 0.0001 | 0.2 | 0.002 | ||||
| Density | ρ=8.15g/cm3 |
| Melting Point | 1405℃ |
| Electrical property | Room temperature ρ=1.23×10-6Ω.m |
| Magnetic Property | Non-magnetic |
| GH80A Mechanical Property | Tensile Strength | Yield Strength | Elongation |
| Heat Treatment Method | σ b/MPa | σp0.2/MPa | σ5/% |
| Solution Treatment | 1000 | 620 | 50 |
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |

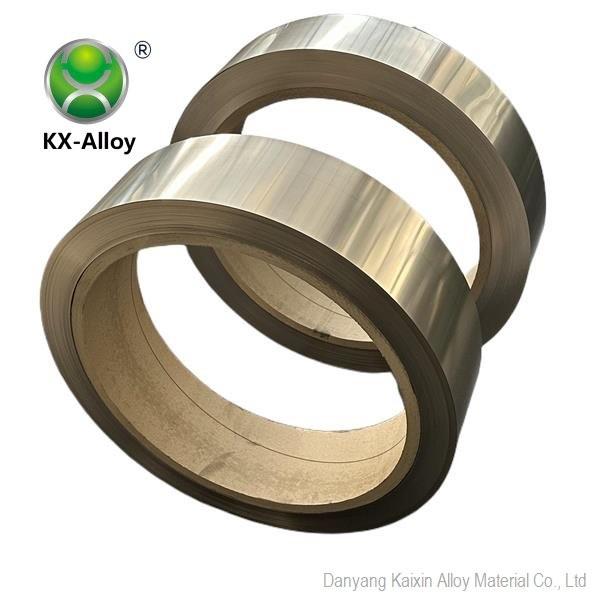

| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe | ¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
|
|
