KX No5500 Sheet Welding Wire Strip Round Bar Light Rod Process Performance On Monel Alloy
Product Description and Application
No5500 is also known as Monel K500
No5500 alloy has comparable corrosion resistance to Monel 400, but has higher mechanical strength and hardness. It has good heat resistance and long-term structure stability. It is mainly used in the manufacture of turbine blades and gas turbine blades with operating temperature below 750℃ on aeroengines. It is also used for making fasteners and springs on ships, Pump and valve parts on chemical equipment, pulp blade on paper making equipment and etc.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Alloy | % | Ni | Cu | Al | Ti | Fe | Mn | S | C | Si |
No5500 | Min | 63 | 27.0 | 2.30 | 0.35 | |||||
| Max | 33.0 | 3.15 | 0.85 | 2.0 | 1.5 | 0.01 | 0.25 | 0.5 |
| Density | 8.44g/cm³ |
| Melting Point | 1315-1350℃ |
| Alloy and State | Tensile Strength Rm N/mm2 | Yield Strength RP0.2N/mm2 | Elongation A5 % |
No5500 | 1100 | 790 | 20 |
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe | ¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |

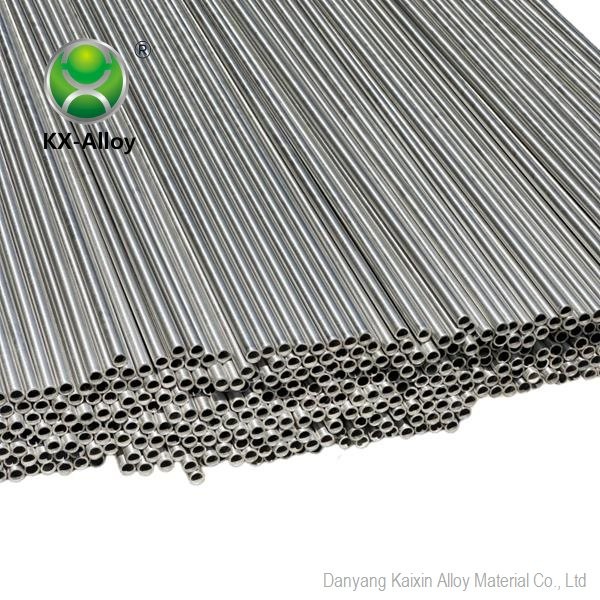

| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
|
|
