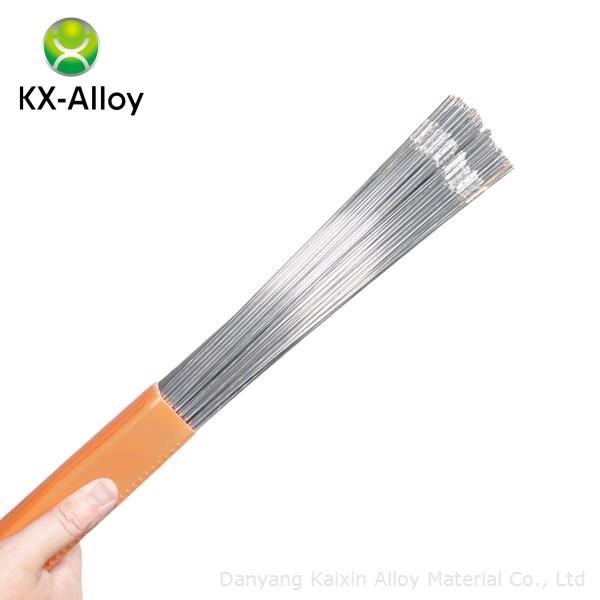

KX NO6059 Welding Wire Light Rod on Nickel Based Welding Wire Alloy
Product Description and Application
NO6059 is also known as Ernicrmi-13, SNi6059, NiCr23Mo16
NO6059 is used in chemical processing plants, solid waste incinerators, the pulp and paper industry, flue gas desulfurization plants, harsh offshore or petrochemical environments and the oil or gas industry.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Model | Grade | AWS A5.14:2005 | C | Mn | Fe | Si | Cu | Nia | Coa | Al | Ti | Cr | Nbb | Mo | W | Other C |
| SNi6059 | NO6059 | ERNiCrMo-13 | ≤0.01 | ≤0.5 | ≤1.5 | ≤0.1 | - | ≥56.0 | ≤0.3 | 0.1-0.4 | - | 22.0-24.0 | - | 15.0-16.5 | - | - |
| Density | 8.6g/cm3 |
| Melting Point | 1310-1360℃ |
Other Technical Requirements
Welding Wire Diameter and Allowable Deviation
| Package | Welding Wire Diameter | Allowable Deviation |
| Vertical Bar | 1.6,1..8,2.0,2.4,2.5,2.8,3.0,3.2, 4.0,4.8,5.0,6.0,6.4 | ±0.1 |
| Welding Wire Coil | +0.01 -0.04 | |
Wire Reel Diameter 100mm and 200mm | 0.8,0.9,1.0,1.2,1.4,1.6 | |
Wire Reel Diameter 270mm and 300mm | 0.5,0.8,0.9,1.0,1.2,1.4,1.6,2.0, 2.4,2.5,2.8,3.0,3.2 | |
| Welding wire can be produced in other sizes, deviations and package as agreed by both parties | ||
Allowable deviation of ±0.1 diameter when used for hand-filled wire | ||
Welding Wire Loose Diameter and Warp Pitch
| Diameter of Wire Reel | 100 | 200 | 270,300 |
| Loose Diameter | 60~380 | 250~890 | 380~1300 |
| Warp Pitch | ≤13 | ≤19 | ≤25 |
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe | ¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
|
|
