KX Hastelloy C22 Welding Wire Sheet Pipe Tubing Plate on Hastelloy Alloy
Product Description and Application
HastelloyC-22 is also known as UNS N06022, W N 2.4602
Hastelloy c -22 has excellent pitting corrosion resistance, crevice corrosion and stress corrosion cracking. It has excellent antioxidant water medium capacity, including wet chlorine, nitric acid or a mixture of oxidizing acids containing chloride ions. Because of this versatile performance, it can be used in some troublesome environment or in multiple production purpose plant applications. Hastelloy C22 alloys have exceptional resistance to various chemical environments, including highly oxidizing substances such as ferric chloride, copper chloride, chlorine, hot polluted solutions (organic and inorganic), formic acid, acetic acid, acetic anhydride, seawater and salt solutions. Hastelloy C22 alloy is resistant to grain boundary precipitation in the welding heat affected zone, which makes it suitable for many chemical processes in the welding state.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting
Furnace(ESR)
| Alloy | % | Ni | Cr | Mo | Fe | W | Co | C | Mn | Si | V | P | S |
| C22 | MIX | Rem | 20.0 | 12.5 | 2 | 2.5 | |||||||
| MAX | 22.5 | 14.5 | 6 | 3.5 | 0.015 | 0.5 | 0.08 | 0.35 | 0.02 |
| Density | 8.9g/cm3 |
| Melting Point | 1325-1370℃ |
| Alloy State | Tensile strength Rm N/mm2 | Yield strength RP0.2N/mm2 | Percentage Elongation A5 % |
| Hastelloy C22 | 690 | 283 | 40 |
Product Metallographic Structure
Hastelloy C22 has a face-centered cubic lattice structure
Professional Customization

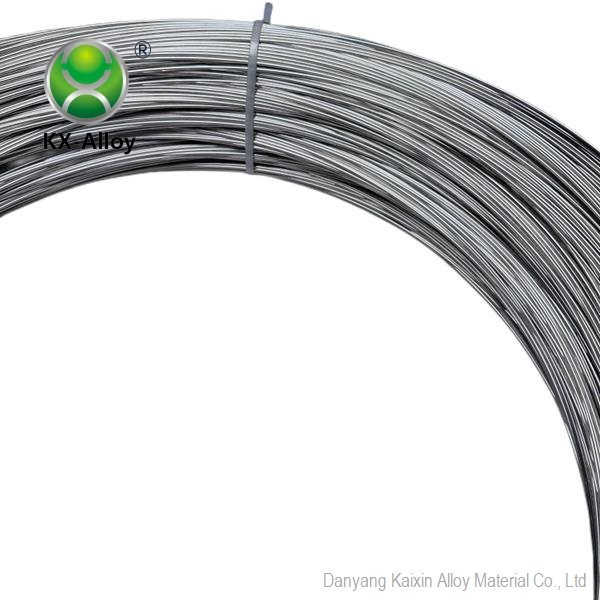

| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |

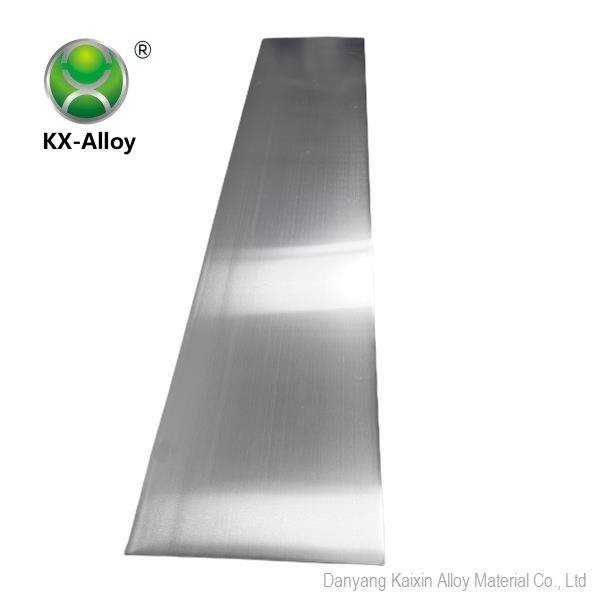

| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe | ¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
|
|
