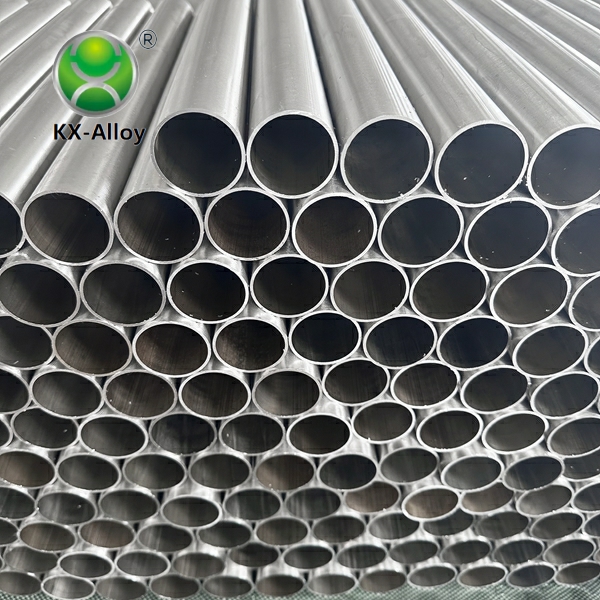

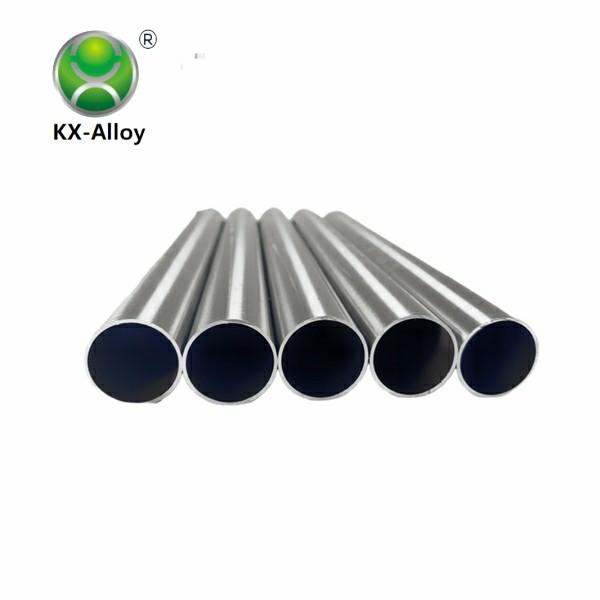

KX Incoloy825( alloy 825)ASTM Seamless Pipe
Product Description and Application
Incoloy825 is also known as NS142, UNS N08825, W.NS.2.4858
incoloy825 is a whole austenitic Ni-Cr alloy with iron
stabilization treatment, which has good stress corrosion cracking
resistance and resistance to spot and seam corrosion, good
oxidation resistance and non-oxidation thermal acidity, excellent
mechanical properties at room temperature and high temperatures up
to 550°C. It is certified to manufacture pressure vessels when up
to 450°C. It is widely used in various industrial fields where the
temperature does not exceed 550°C. Typical applications are heating
tubes, containers, tubes and chains used in sulfuric acid pickling
factories, seawater cooling heat exchanger, Marine product pipeline
system, acid gas environment pipeline, heat exchanger in phosphoric
acid production, evaporator, washing, impregnation pipe and etc.,
air heat exchanger in petroleum refining, food engineering,
chemical process, flame retardant alloy for high-pressure oxygen
applications.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting
Furnace(ESR)
| Alloy | Ni | Cr | Fe | C | Mn | Si | Mo | Cu | Co | Al | Ti |
| Incoloy 825 | 38-46 | 19.5-23.5 | Rem | ≤0.025 | ≤1.0 | ≤0.5 | 2.5-3.5 | 1.5-3.0 | ≤1.0 | ≤0.2 | 0.6-1.2 |
| Density | p=8.1g/cm3 |
| Melting Temperature Range | 1370~1400°C |
Mechanical Properties at Room Temperature(Min)
| Product | Specification | Yield Strength | Yield Strength | Tensile Strength | Percentage Elongation |
Sheet Strop/Cold Rolled | 0.5-6.4 | 240 | 265 | 585 | 30 |
| 5-100 | |||||
Rod | 1.6-64 | ||||
| 25-100 | |||||
| ＞100-240 | 220 | 250 | 550 | 35 | |
Pipe | 64-240 | 180 | --- | 530 | 30 |
| 5-100 | 240 | 265 | 585 | 30 | |
| Condensation and Heat Exchanger | 16-76 |
Mechanical Properties at High Temperature(Min)
| Product | Yield Strength RP0.2N/mm2 | Yield Strength RP1.0N/mm2 | ||||||||
| Temperature | 100 | 200 | 300 | 400 | 450 | 100 | 200 | 300 | 400 | 450 |
| Plate/Strip/Tube | 205 | 180 | 170 | 160 | 155 | 235 | 205 | 195 | 185 | 180 |
| Rod | 190 | 165 | 155 | 145 | 140 | 220 | 190 | 180 | 170 | 165 |
Notes:
Tensile testing shall be carried out in accordance with ASTM A370
or EN10002-1
Minimum properties quoted (tested at room temperature in a
longitudinal direction)
Testing performed on each melt of material per heat treatment batch
